Your ultimate driving partner pro.
2.5K 2560x1440P@30fps Crystal Clear Video
1080P 60fps HD Video & Audio Recording
Super Night Vision with F1.8 6-Layer Optical Glass Lens
170° Wide Viewing Angle
Auto LCD OFF
Continuous Loop Recording & G-sensor
24 Hours Motion Detection Parking Monitor
Optional GPS to track speed, route, location
Shots videos up to 2.5K 2560x1440P@30fps, while 1920*1080P 60fps better for you to captures fast moving traffic and smoother video with clearly in high speed.

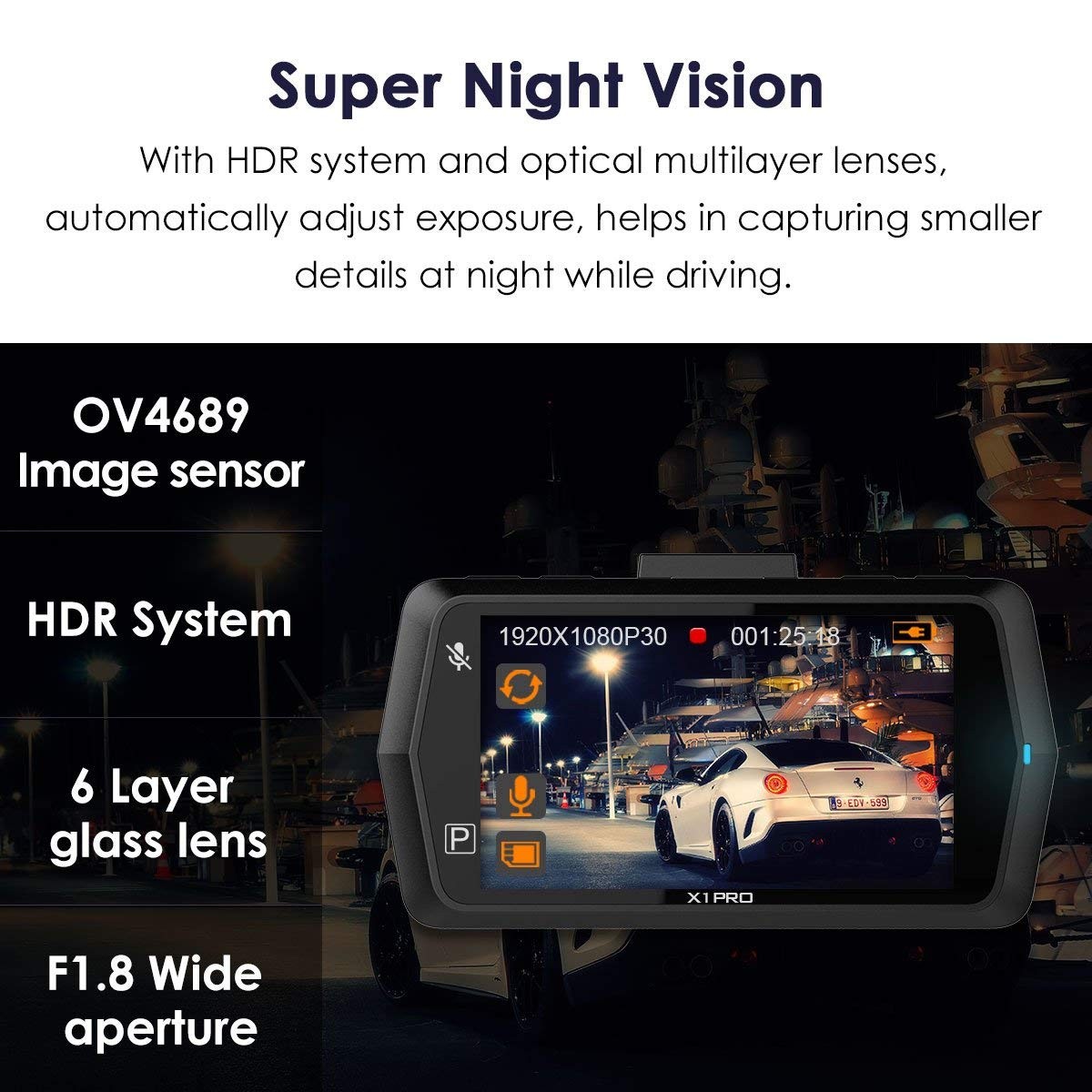

F1.8 6-Layer Optical Glass Lens with HDR, dust and heat proof, helps capture high quality images in bad environment, which ensures super night vision at night.
Auto switch to Parking mode after your parked your car 5 minutes. Auto record when senses movement in front of your car. Please hardwire (Asin: B07G9WTWB9) it or connect it with external battery pack when parking.
Auto save of sudden braking and unexpected impact with a built-in G-sensor to “Event Folder” so they won't be overwritten. You can also lock the important videos manually.
Loop recording auto overwrite the oldest files once card reaches capacity. Support 32GB, 64GB, 128GB, 256GB card, please format on the dash cam before using.
Time lapse function auto takes photos at specified intervals and edit them together for you to record movements, changes, or events that take place over a long period of time, or just captures frames for a time lapse video of a multi-week road trip, greatly saved space on your memory card.
Optional GPS module can record your rute, location and speed in either KM/H or MP/H, you can check the gps information on the Vantrue GPS player. To use gps function, please buy an extra X1 PRO gps mount to use it(Asin: B07CPSBXWL).
Strong suction mount sticks to the windshield firmly, yet it is very easy to remove. If windshield mount is illegal in your state, the LCD Rotate Function offers you an alternative option to mount the dash cam upright on your dashboard. (Please note: adhesive disc is not included, please buy an adhesive disc to mount on dashboard).
Equipped with PC and ABS housing, the X1 pro dash cam can resist heat and cold damage to the dash cam from -4 to 194 Deg, working temp is -4 to 158 Deg, which ensures safety when you are driving.
| Model | OnDash X1 Pro |
| Processor | |
| Sensor | OV4689 |

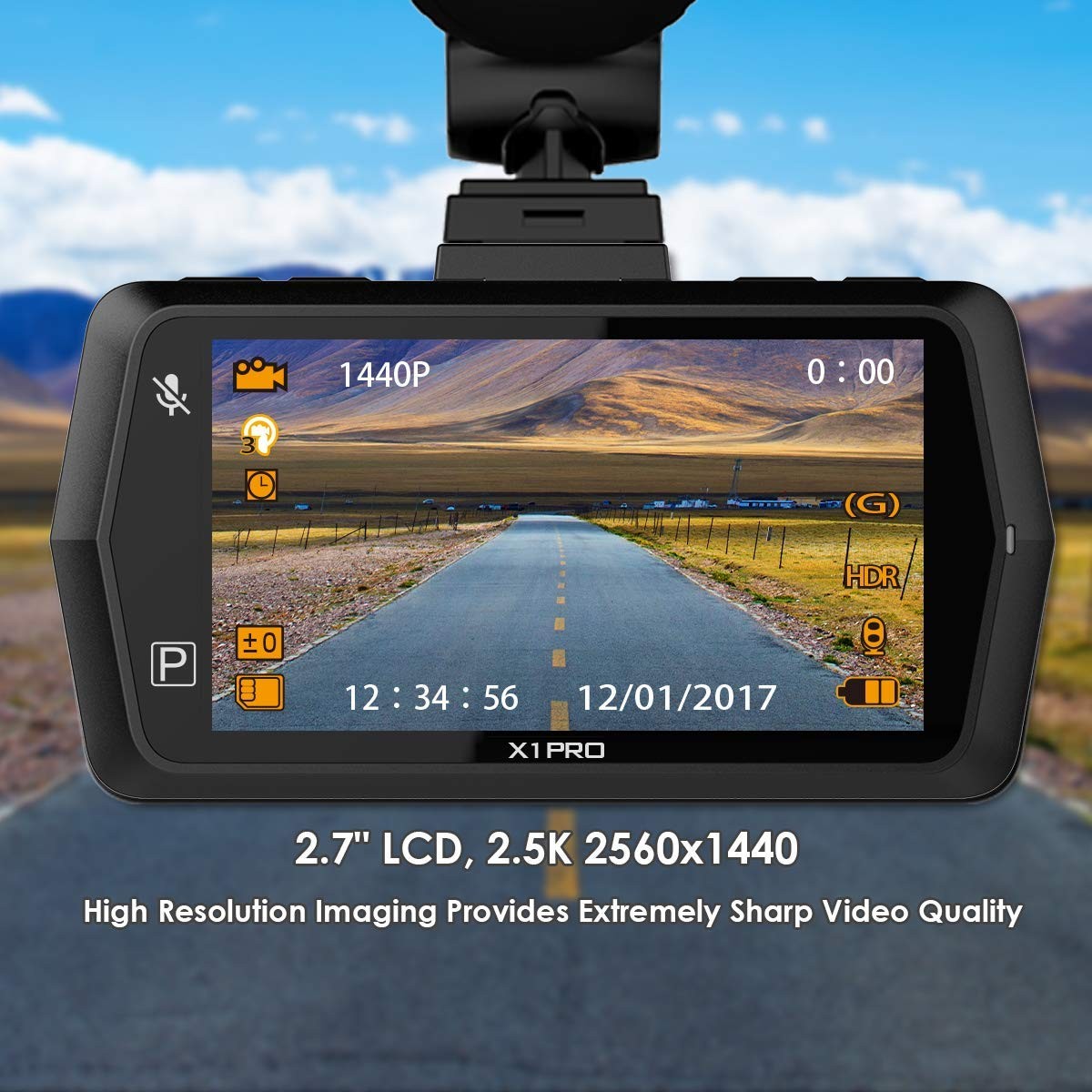

| Display | 2.7 inch TFT LCD (16:9) |
| Lens | 170 degrees wide viewing angle and full 6 layer glass lens with wide aperture of F/1.8. |
| Languages | English/简体中文/Deutsch/Japanese |
| Video | H.264 compressed format; 2560x1440P30,1920x1080P60, 1920x1080P30, 1280x720P30 |
| Image | JPEG;16M |
| Audio | Built-in microphone and speaker |
| Memorizer | Internal memory: 4M External: SDHC (8-256GB, micro SD card of Class 10) |
| Shutter | Electronic shutter |
| USB Port | USB2.0, mini |
| Battery | 130mAh 3.7V Polymer Li-ion battery |
| Working Temp. | 32 – 158 deg. Fahrenheit, 0-70 deg. Celsius |
Storage Temp. | 14 – 176 deg. Fahrenheit, -10 - 80 deg. Celsius |
| PC Operation System | Windows XP/Vista/Windows 7/Windows 8/Windows 10/Mac |
How to upgrade the firmware?
Dear Customer,
Please follow the Steps below to upgrade your device:
1. Download the firmware file (http://vantrue.net/Support/detail/id/44.html) to your PC;
2. Format you microSD card on the camera, and then connect the camera to the computer through the USB port on the camera. Copy the firmware file (in .bin format) to the microSD card, then unplug the camera from the computer and turn it off;
Note: the firmware file (in .bin format) could not be recognized by computer, it could just be recognized by the dash cam, so don’t try to open it on PC, just copy it to the card.
3. Plug the camera to a power charger (not computer), or press the power button;
4. Then the camera will auto upgrade, and it will take about 30 secs to 1 min, during this time, the camera will not turn on and will not respond to any button or operation;
5. Once the dash cam upgraded successfully, it will turn on and work.
6. Please have a check the version of your device now (go to the System Setup menu and turn to the Version) and see if it is VTX1Pro7H.V1. If it is, then the camera has been upgraded successfully.
7. Remove the file from the microSD card when the update has been completed, or the camera will upgrade itself everytime when it detects the firmware file in the card.
Thank you!
Any question, please contact us at support@vantrue.net.
Best regards,
Vantrue Team
